Manta Alluminium 65-85-100-120

Manta Alluminium 65-85-100-120

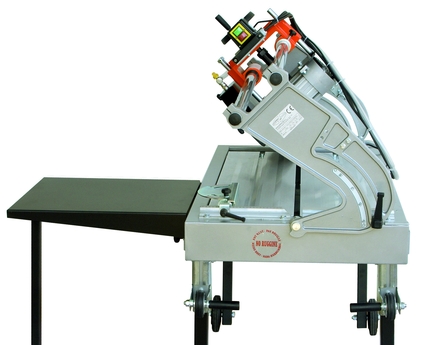

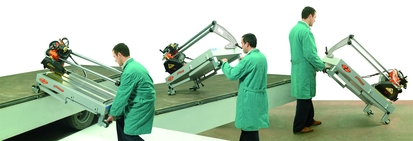

Light and versatile Aluminium machine with an extremely accurate cutting. The head slides on two chrome-plated ground bars by means of linear ball-bearings. It is equipped with a submersible pump placed inside the base to collect the water cooling the blade. Vertical head motion by means of a handwheel for a fast and stable adjustment. Tilting head for 45° cuts. Provided with folding legs for an easy transport; Stabilizer bars.

Details



Accessories

1 submersible pump 1 stop transport handles and wheels round square transport wheels servicing wrenches side table without leg wheels to move the machine

Optionals

Laser diamond cutting blade side stop battery laser pointer long square side table

Download

Manta_Alluminium_65-85-100-120.pdf

Technical Data

ITEM MOD.
120150AL MANTA 65 ALLUMINIUM 350 - 25,4 2800 2,2 - 230* 650 150 110 107x66x77 61
120200AL MANTA 85 ALLUMINUM 350 - 25,4 2800 2,2 - 230* 850 150 110 127x66x77 65
120202AL MANTA 85-550 ALLUMINIUM 550 - 30 1400 2,2 - 230* 695 210 200 127x66x85 75
120204AL MANTA 85-550 ALLUMIN. TRIF. 550 - 30 1400 4 - 400 695 210 200 127x66x85 76
120250AL MANTA 100 ALLUMINUM 350 - 25,4 2800 2,2 - 230* 1000 150 110 155x66x77 72
120300AL MANTA 120 ALLUMINIUM 350 - 25,4 2800 2,2 - 230* 1200 150 110 171x66x77 79
* 3 kW - triphase version is also available.
The technical data here in mentioned are non-binding. They are for your guidance, only. NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.
