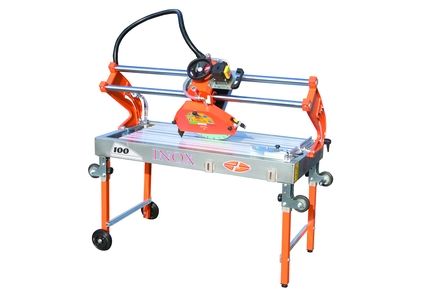

Manta INOX Series

Manta INOX Series

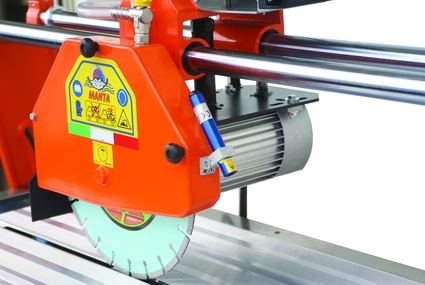

Stainless steel base frame; Cutting head sliding on two chromed and hardened steel bars, manual head-travel by means of a handgrip, manual raise and fall by means of a handwheel, tilting head for 45 degree angle cuts, integrated folding legs, stabilizer bars, self-braking motor.

Details



Video

Accessories

1 pump 1 round square 1 battery laser pointer Transport handles and wheels Wheels to move the machines (up to model 120) 1 set of servicing wrenches

Optionals

diamond cutting blade wheels to move the machine (for mod. 150 only) long diagonal square side stop

Download

Manta_INOX_Series.pdf

Technical Data

ITEM MOD.
120261 MANTA 85 INOX** 350 - 25,4 2800 2,6-230* 850 160 110 144x66x77 96
120260 MANTA 100 INOX** 350 - 25,4 2800 2,6-230* 1000 160 110 157x66x77 106
120262 MANTA 120 INOX** 350 - 25,4 2800 2,6-230* 1200 160 110 177x66x77 120
120263 MANTA 150 INOX** 350 - 25,4 2800 2,6-230* 1500 160 110 197x66x77 166
* Triphase version is also available.
** Self-bracking motor.
The technical data here in mentioned are non-binding. They are for your guidance, only. NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.
