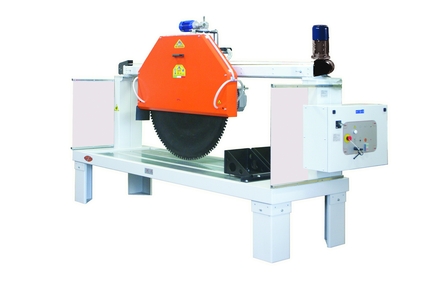

Manta TB 150 Special

Manta TB 150 Special

Frame and bench in steel; detachable angled legs; head travel manually or automatically operated. Head rise/fall motorized by means of a gearbox (both models manual / automatic). No tilting head. Self-braking motor.

Details



Video

Accessories

Protection side screens water pump stops in front of the blade set of servicing wrenches Software for incremental cuts included in the automatic saw.

Optionals

cutting blade side roller table side brackets

Download

Manta_TB_150_Special.pdf

Technical Data

ITEM MOD.
150004 TB 150 SPECIAL - 1000* 1000 900 7,5 - 400 1500 550 400 320x108x167 506
150006 TB 150 SPECIAL - 1000 AUTO* 1000 900 7,5 - 400 1500 550 400 320x108x177 546
150008 TB 150 SPECIAL - 1200* 1200 900 11 - 400 1450 550 490 320x108x167 516
150010 TB 150 SPECIAL - 1200 AUTO* 1200 900 11 - 400 1450 550 490 320x108x177 556
* Inverter for blade variable speed.
The technical data here in mentioned are non-binding. They are for your guidance, only. NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.
