Manta 200-250-300 ECO

Manta 200-250-300 ECO

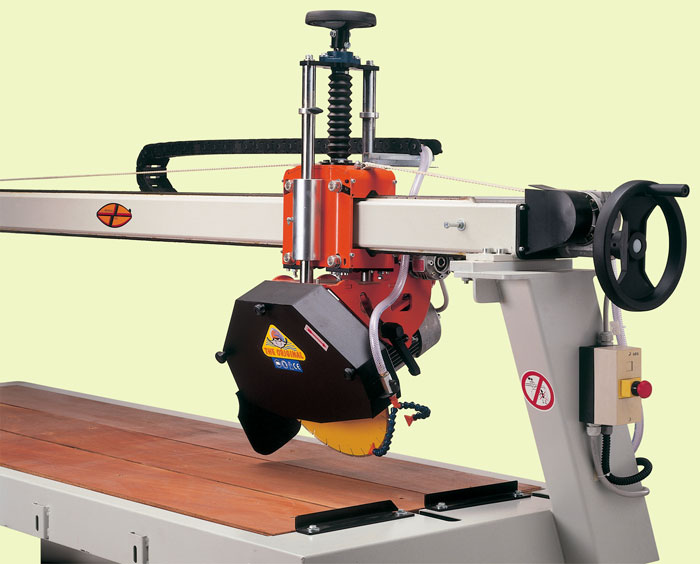

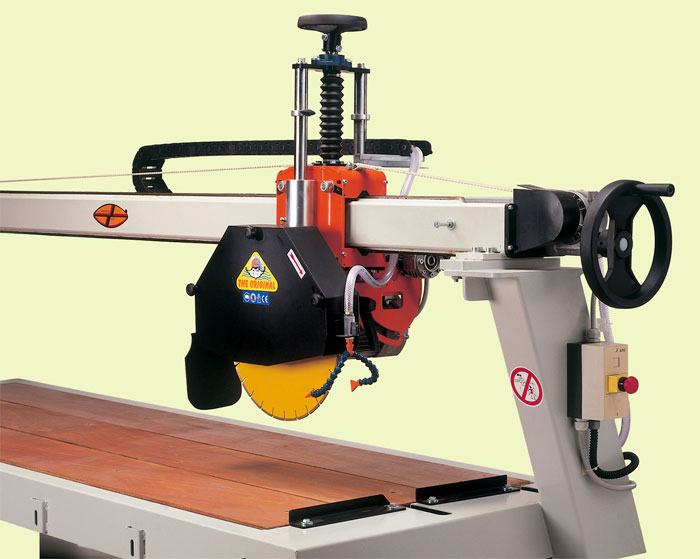

Automatic Stone Slab Saw - Available in two versions: manual and automatic. Heavy-duty, inexpensive and easy to run. Provided with a plywood bench. Suitable both for small workshops and big industries processing any kind of stone material. Cuts from 90 to 45°.

Details



Video

Accessories

Submersible Pump to cool the blade Service wrenches 1 roller bench extension Side stop System for incremental cuts

Optionals

Extra roller extensions Diamond cutting Blade Laser Mechanic square

Download

manta_200-250-300-ECO_web.pdf

Technical Data

ITEM MOD.
150552 FRESA MANTA 200 ECO manuale 450 - 30 2800 4 - 400* 2000 250 150 290x91x121 340
150553 FRESA MANTA 200 ECO manuale 450 - 30 1400 4 - 400* 2000 250 150 290x91x121 340
150550 FRESA MANTA 200 ECO automatica 450 - 30 2800 4 - 400* 2000 250 150 314x91x121 360
150551 FRESA MANTA 200 ECO automatica 450 - 30 1400 4 - 400* 2000 250 150 314x91x121 360
150602 FRESA MANTA 250 ECO manuale 450 - 30 2800 4 - 400* 2500 250 150 340x91x121 395
150603 FRESA MANTA 250 ECO manuale 450 - 30 1400 4 - 400* 2500 250 150 340x91x121 395
150601 FRESA MANTA 250 ECO automatica 450 - 30 2800 4 - 400* 2500 250 150 364x91x121 410
150600 FRESA MANTA 250 ECO automatica 450 - 30 1400 4 - 400* 2500 250 150 364x91x121 410
150652 FRESA MANTA 300 ECO manuale 450 - 30 2800 4 - 400* 3000 250 150 390x91x121 450
150653 FRESA MANTA 300 ECO manuale 450 - 30 1400 4 - 400* 3000 250 150 390x91x121 450
150651 FRESA MANTA 300 ECO automatica 450 - 30 2800 4 - 400* 3000 250 150 414x91x121 470
150650 FRESA MANTA 300 ECO automatica 450 - 30 1400 4 - 400* 3000 250 150 414x91x121 470
* Single phase also available - 2.2 kW - 2800/1400 RPM.
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
