Manta 250-300 Special

Manta 250-300 Special

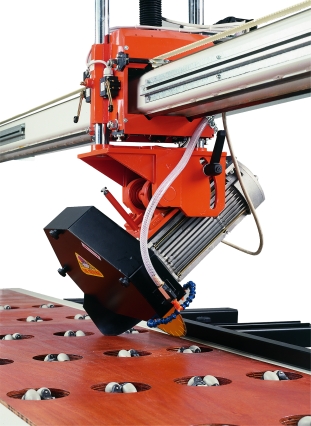

Automatic Stone Slab Saw - Heavy-duty and easy to run. Suitable for both small stone shops and large industrial stone fabrication shops. The marine ply wood cutting bed is equipped with a lifting system for multi-directional positioning of slabs. Omni-Roller wheels make turning the slab allowing an easy job. It is provided with an electric raise and fall, electric traverse and the speed control is adjustable by the operator. The head can be adjusted from 90 to
45 degrees to enable cuts.

Details



Video

Accessories

Tank collecting water Submersible Pump to cool the blade Service wrenches 1 side roller table 2 fixed side holders Side Stop Incremented cut system

Optionals

Extra roller tables Diamond cutting Blade Mechanic square Electric laser pointer

Download

manta_250-300-special_web.pdf

Technical Data

ITEM MOD.
150400 FRESA MANTA 250 SPECIAL CE 450 - 40 2800 4 - 400* 2700 200 150 342x102x140 600
150401 FRESA MANTA 250 SPECIAL CE 450 - 40 2800 5,5 - 400* 2700 200 150 342x102x140 600
150402 FRESA MANTA 250 SPECIAL CE 450 - 40 1400 5,5 - 400* 2700 200 150 342x102x140 600
150454 FRESA MANTA 300 SPECIAL CE 450 - 40 2800 5,5 - 400* 3200 200 150 395x102x140 700
150452 FRESA MANTA 300 SPECIAL CE 450 - 40 1400 5,5 - 400* 3200 200 150 395x102x140 700
150457 FRESA MANTA 300 SPECIAL CE 2 velocità 450 - 40 1400 - 2800 4 - 400* / 5,5 - 400* 3200 200 150 395x102x140 700
150456 FRESA MANTA 300 SPECIAL CE PLUS 450 - 40 400/2800 5,5 - 400* 3200 200 150 395x102x140 700
* Single phase is also available - 2.2 kW - 2800/1400 RPM.
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
