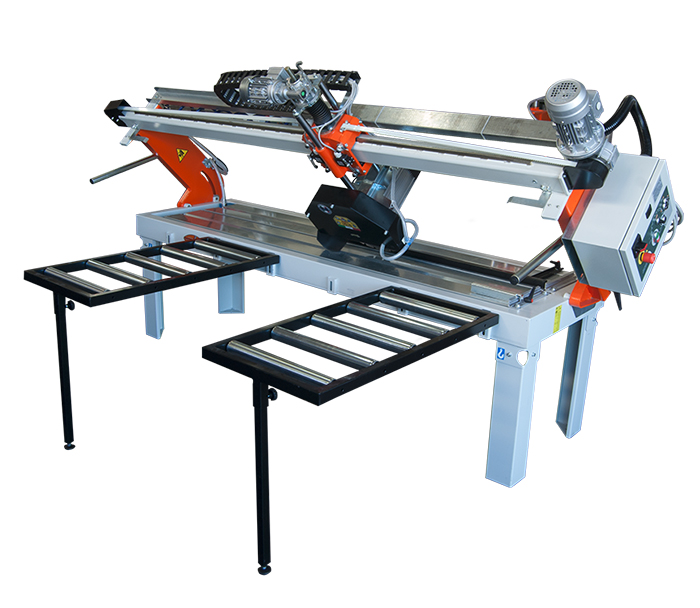

Manta Compact 200-250-300

Manta Compact 200-250-300

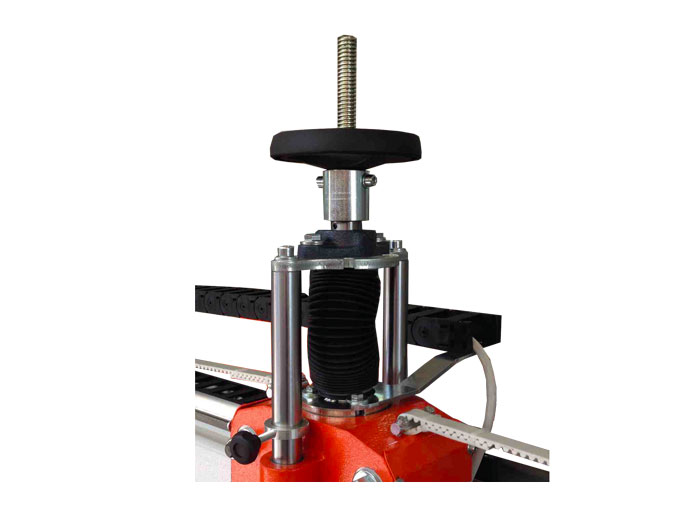

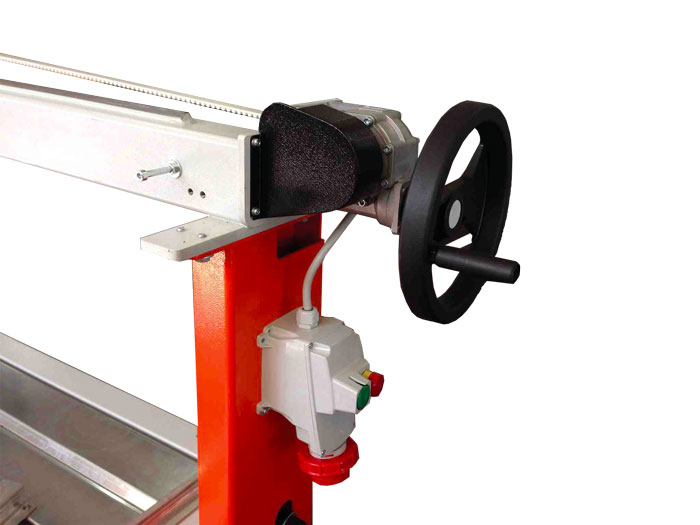

Rugged, inexpensive and simple machine. Framework and table in steel; cutting head sliding on structural steel beam; Angle legs; tilting head for 45 degree angle cuts. Inclination of the whole cutting unit by means of two hand-levers. Available in two versions (head travel and rise/fall): manual and automatic.

Details



Accessories

Water pump to cool the blade 1 side roller table 1 side stop Set of servicing wrenches

Optionals

Cutting blade Extra roller tables Laser pointer Mechanic square

Download

manta_200-250-300-compact_web.pdf

Technical Data

ITEM MOD.
150900 FRESA MANTA 200 COMPACT MANUALE 350 - 25.4 2800 3 - 400* 2000 250 110 290x91x121 237
150911 FRESA MANTA 200 COMPACT MANUALE 450 - 30 1400 4 - 400* 2000 250 150 290x91x121 290
150920 FRESA MANTA 200 COMPACT SEMI AUTOMATICA 350 - 25.4 2800 3 - 400* 2000 250 110 314x91x121 250
150931 FRESA MANTA 200 COMPACT SEMI AUTOMATICA 450 - 30 1400 4 - 400* 2000 250 150 314x91x121 305
150901 FRESA MANTA 250 COMPACT MANUALE 350 - 25.4 2800 3 - 400* 2500 250 110 340x91x121 260
150912 FRESA MANTA 250 COMPACT MANUALE 450 - 30 1400 4 - 400* 2500 250 150 340x91x121 315
150921 FRESA MANTA 250 COMPACT SEMI AUTOMATICA 350 - 25.4 2800 3 - 400* 2500 250 110 364x91x121 280
150932 FRESA MANTA 250 COMPACT SEMI AUTOMATICA 450 - 30 1400 4 - 400* 2500 250 150 364x91x121 335
150902 FRESA MANTA 300 COMPACT MANUALE 350 - 25.4 2800 3 - 400* 3000 250 110 390x91x121 300
150913 FRESA MANTA 300 COMPACT MANUALE 450 - 30 1400 4 - 400* 3000 250 150 390x91x121 350
150922 FRESA MANTA 300 COMPACT SEMI AUTOMATICA 350 - 25.4 2800 3 - 400* 3000 250 110 414x91x121 315
150933 FRESA MANTA 300 COMPACT SEMI AUTOMATICA 450 - 30 1400 4 - 400* 3000 250 150 414x91x121 365
* Single phase also available - 2.2 kW - 2800/1400 RPM.
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
