Manta Poker Jumbo Basic

Manta Poker Jumbo Basic

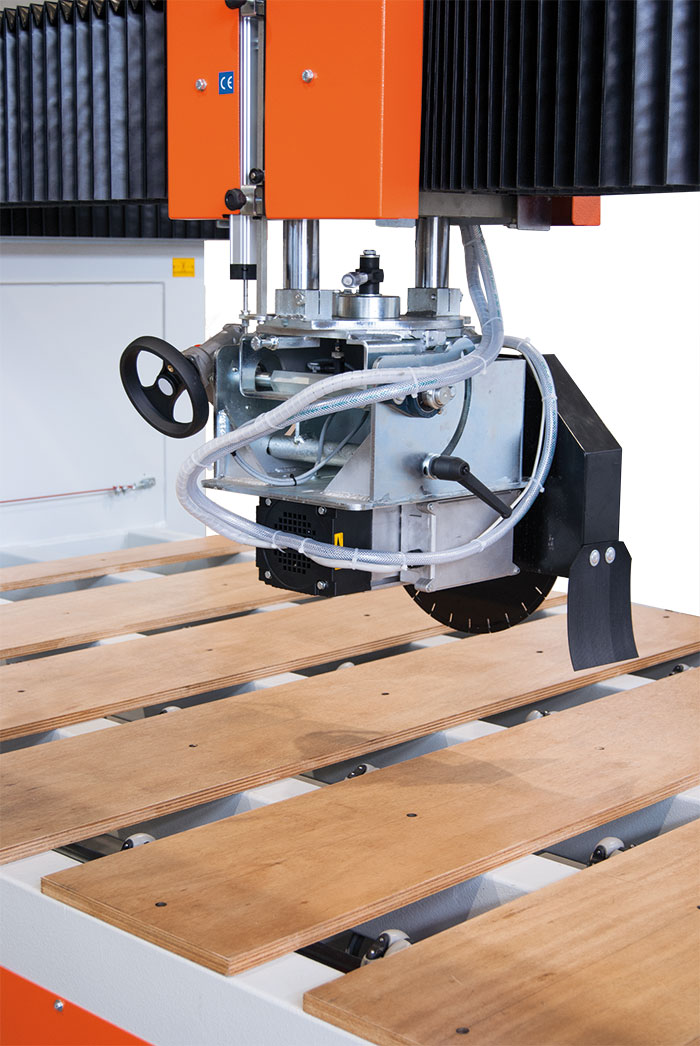

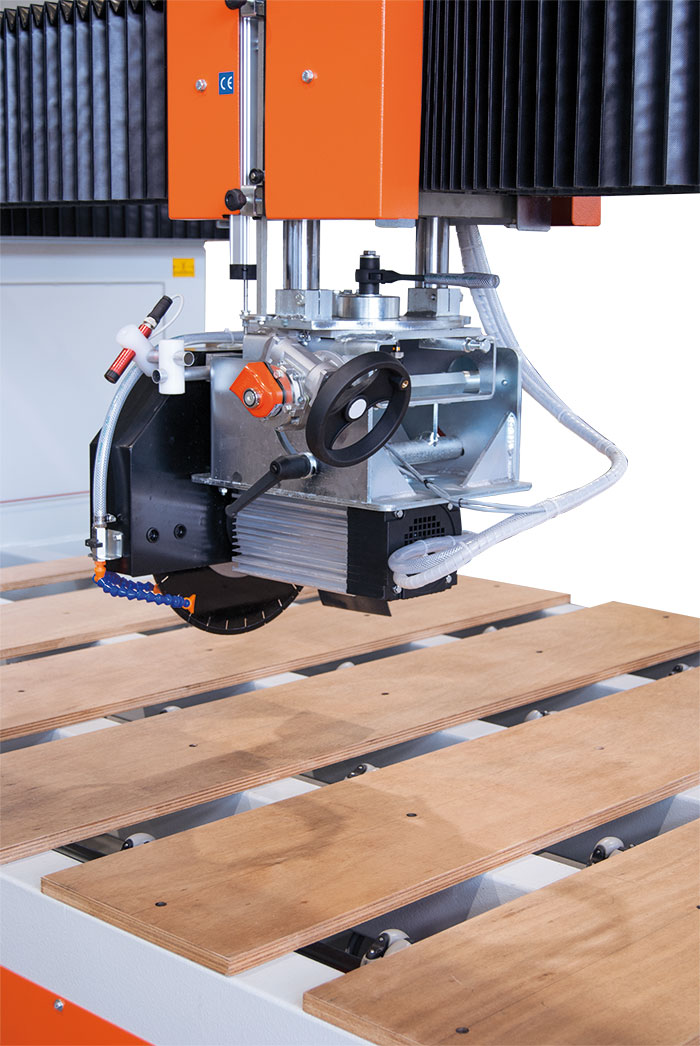

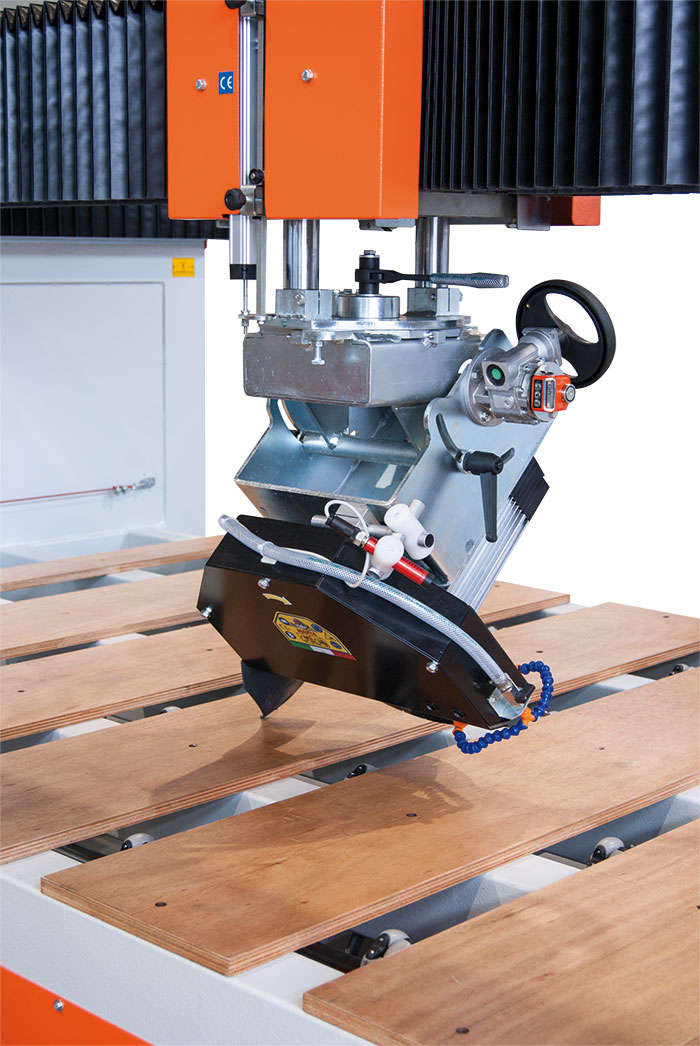

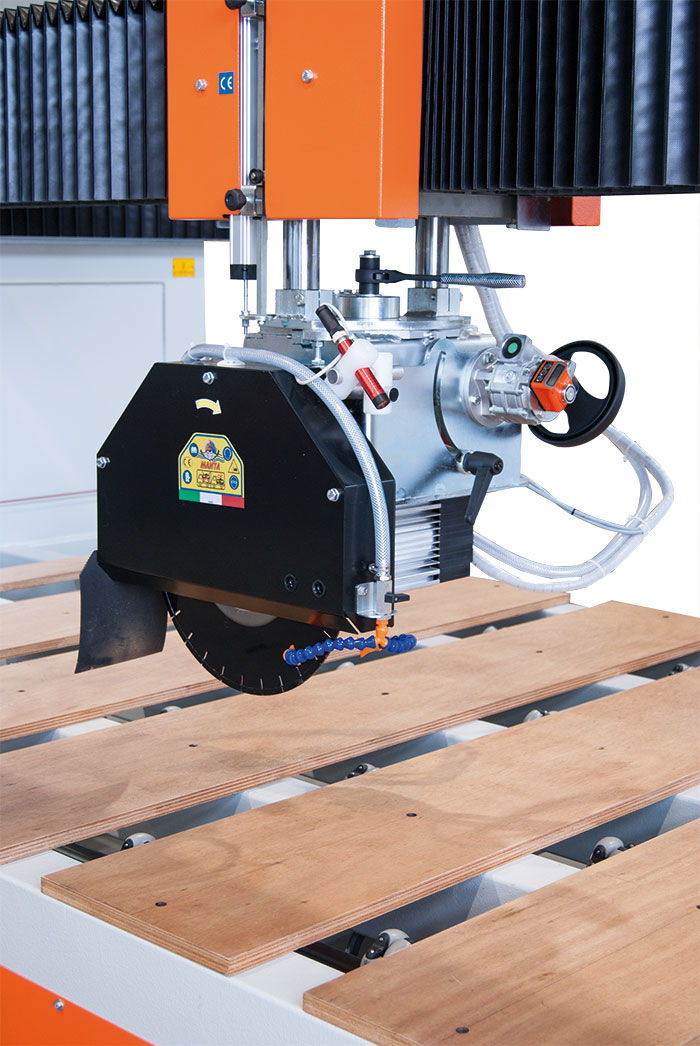

Robust and versatile monolithic machine. It cuts both length ways (X axis) and cross ways (Y axis). The head traverse is driven by means of an electronic program card. The main technical features are: X Axis Traverse: 3500 mm.; Y Axis Traverse: 1650 mm.; Z Axis Raise: 140 mm.; Cutting head speed driven by inverter; manual turning head (0-90 degree); head inclination (0-90 degree) by means of a hand-wheel. CE marking.

Details



Accessories

Marine ply wooden cutting bed Control panel with push buttons to drive the cutting head movement and display for the cutting speed Step cutting facility Adjustable feet

Optionals

Diamond Blade Motor Hp 10 - kW 7,5 Laser fitted on the cutting head for the X an Y axes aligning - 10 or 15 mW available Red diode Tray with pump for collection and circulation of the water cooling the blade Positioning, Installation of the machine and Training of operators.

Download

manta_poker_jumbo_basic_web.pdf

Technical Data

ITEM MOD.
150757 FRESA MANTA POKER BASIC JUMBO 450 - 40 1400 5,5 - 400 3500 400 140 495X238X220 1500
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
