Manta Alluminium 150-200

Print Friendly, PDF & Email
Manta Alluminium 150-200

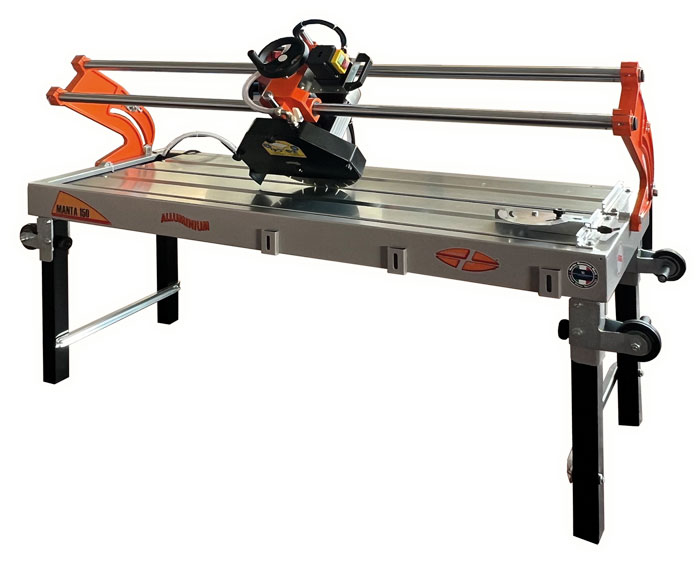

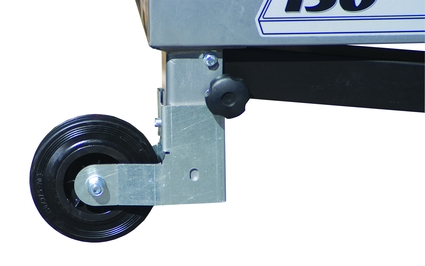

Light, accurate, versatile, completely built in aluminium. Extremely accurate with head sliding by means of linear ball bearings on two chromed and rectified steel bars. It is equipped with a submersed pump inside the base to collect the water cooling the blade. Vertical head motion by means of a handwheel for a fast and stable adjustment. Tilting head for 45° cuts. Folding legs with wheels (not present on LX version).

Details


Accessories
Set of servicing wrenches Diagonal square Transport handles and wheels One-legged side table Wheels to move the machine

Optionals
Diamond cutting blade Side stop Battery laser pointer Long square Side table

Technical Data
ITEM MOD.
120350AL MANTA 150 ALLUMINIUM** 350-25.4 2800 2,2-230* 1500 150 110 197x66x77 89
120355AL MANTA 150 ALLUMINIUM GRANIT** 350-30 1400 2,2-230* 1500 150 110 197x66x77 89
120354AL MANTA 200 ALLUMINIUM 350-25.4 2800 2,2-230* 2000 150 110 250x88x77 106
120359AL MANTA 200 ALLUMINIUM GRANIT 350-30 1400 2,2-230* 2000 150 110 250x88x77 106
120266AL MANTA 200 ALLUM. LX GRANIT 450-40 1400 4-400 2000 150 150 275x88x81 136
* Triphase version in also available.
** Bars Ø 40 mm
The technical data here in mentioned are non-binding. They are for your guidance, only. NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.
