Manta ALU Basic 85-100-120-150

Print Friendly, PDF & Email

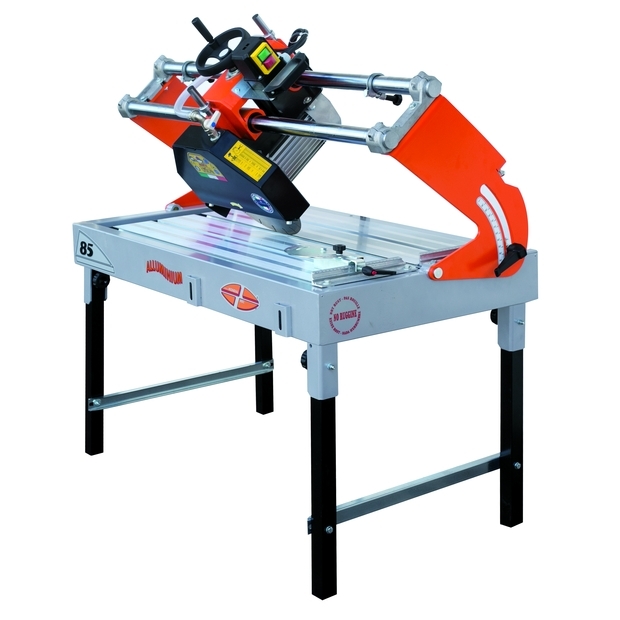

Manta ALU Basic 85-100-120-150

Light, precise and versatile machine made of aluminum. The head slides on two solid chromed and rectified steel bars by means of linear ball-bearings. Own self circulating water tank complete with pump. Head rise and fall by means of a handwheel, travel by means of a handgrip. 45° tilting head. Fixed legs with stabilizer bars (except mod. 150).

Details


Accessories
Diagonal square Set of servicing wrenches

Optionals
Cutting blade Side stop Long square Side table Wheels for an easy manoeuvring of the machine Battery laser pointer

Technical Data
ITEM MOD.
120210AL MANTA 85 ALU BASIC 350 - 25,4 2800 2,2 - 230 850 150 110 127x66x77 76
120254AL MANTA 100 ALU BASIC 350 - 25,4 2800 2,2 - 230 1000 150 110 155x66x77 82
120311AL MANTA 120 ALU BASIC 350 - 25,4 2800 2,2 - 230 1200 150 110 171x66x77 89
120363AL MANTA 150 ALU BASIC 350 - 25,4 2800 2,2 - 230 1500 150 110 197x66x77 99
The technical data here in mentioned are non-binding. They are for your guidance, only. NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.
