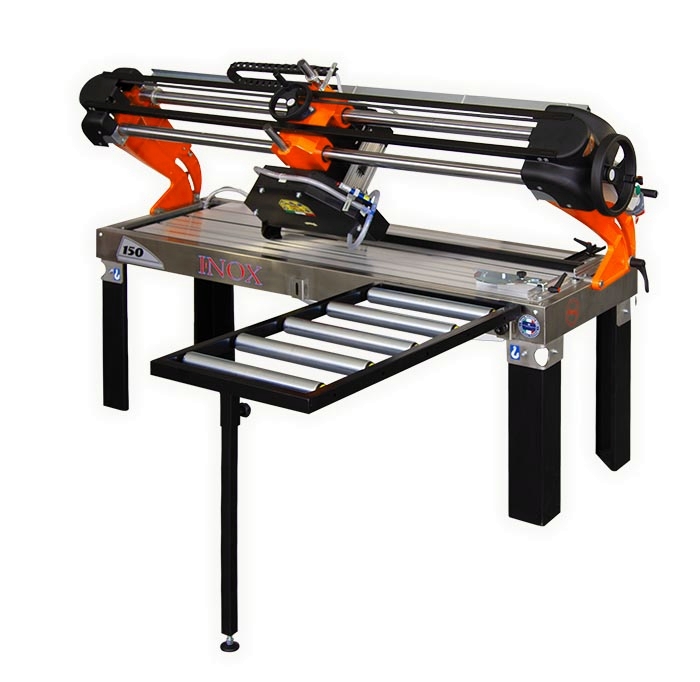

Manta INOX 120-150-200 LX

Print Friendly, PDF & Email
Manta INOX 120-150-200 LX

Stainless steel base frame; cutting head sliding on two chromed and hardened steel bars; manual head travel; manual rise and fall by means of a handwheel; tilting head for 45° angle cuts; angle legs.

Details


Accessories

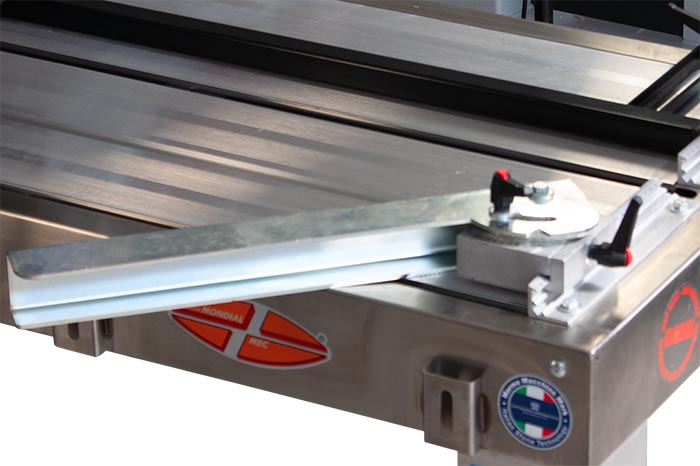

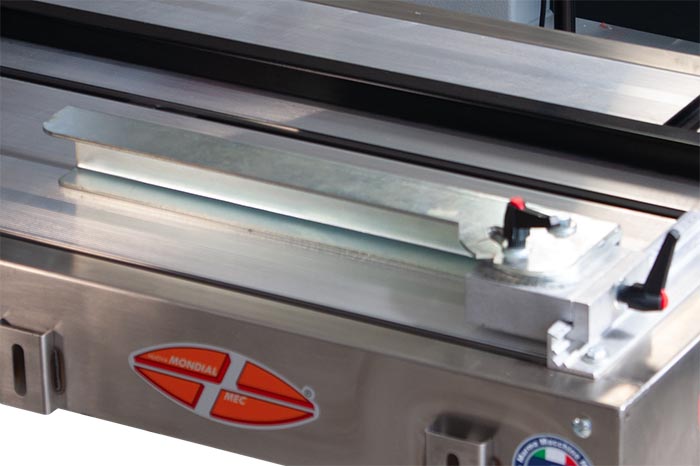

Set of servicing wrenches Pump Battery laser pointer Roller side table Side stop Diagonal square

Optionals
Cutting blade Long Diagonal Square Extra side table Blade for marble Mechanic square

Technical Data
ITEM MOD.
120282 MANTA INOX 120 LX* 350 - 25,4 2800 2,6 - 230 1200 180 110 195x66x87 190
120279 MANTA INOX 150 LX 450 - 30 2800 4 - 400 1500 180 150 218x66x87 190
120265 MANTA INOX 150 LX GRANIT 450 - 30 1400 2,2 - 230 1500 180 150 218x66x87 220
120281 MANTA INOX 150 LX GRANIT 450 - 40 1400 4 - 400 1500 180 150 218x66x87 220
120264 MANTA INOX 200 LX* 350 - 25,4 2800 2,6 - 230 2000 180 110 275x66x87 240
120268 MANTA INOX 200 LX GRANIT 450 - 30 1400 2,2 - 230 2000 180 150 275x66x87 250
120278 MANTA INOX 200 LX GRANIT 450 - 40 1400 5,5 - 400 2000 180 150 275x66x87 250
* Self-braking motor
The technical data here in mentioned are non-binding. They are for your guidance, only. NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.
