Manta JR Basic

Print Friendly, PDF & Email
Manta JR Basic

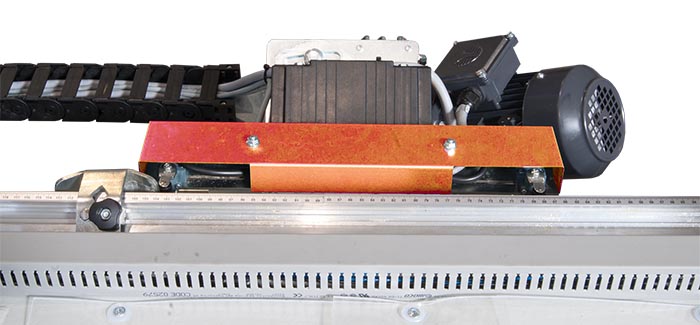

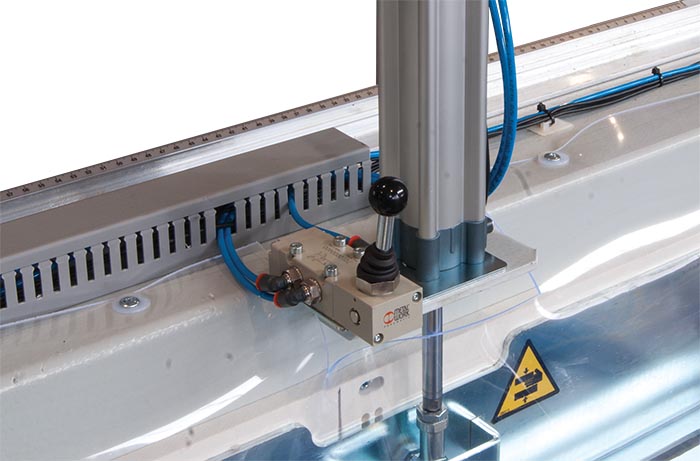

It is the first of a family of machines designed to cut corners very precisely. Its robust, compact structure and precision slides guarantee exceptional cutting quality. The position of the cutting motor below the work surface means that, in most cases, the shiny part of the material is facing downwards and in contact with the machine surface covered with white rubber. It is equipped with 4 pneumatic pistons for blocking the material, it can cut in both directions with adjustable speed and is equipped with an electromechanical system to interrupt the cuts to the desired size. The inclination of the disc is manually adjustable (+ - 5 °), as is the stop. Equipped with guide protection bellows.

Details



Video

Accessories

6 Levelling feet Side table with 7 rubber covered rollers Interrupted cut system Table for small pieces 2 Devices for short pieces 2 Micro Clamps (for thin pieces) Set of servicing wrenches

Optionals

Cutting blade Extra side tables Mini roll extension Ruler to adjust the lenght of cut Water tray with pump Operators’ training

Technical Data

ITEM MOD.
150813 MANTA JR BASIC - 45° TESTA FISSA C/INVERTER 400 - 40 2800 Max* 5,5 - 400 3500 60 483X120X115 1100
150803 MANTA JR BASIC 400 - 40 1400** 4 - 400 3500 60 483x120x115 1100
* with inverter for adjusting the disc rpm / ** without inverter
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
