Manta JR Multigrado

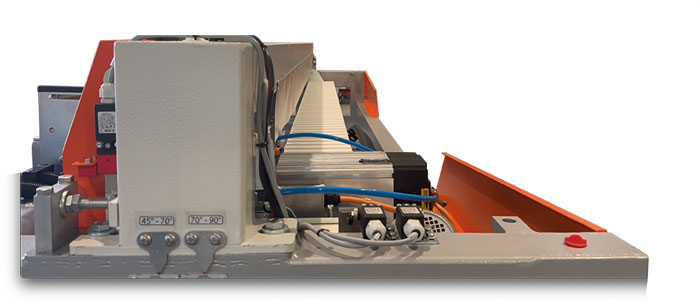

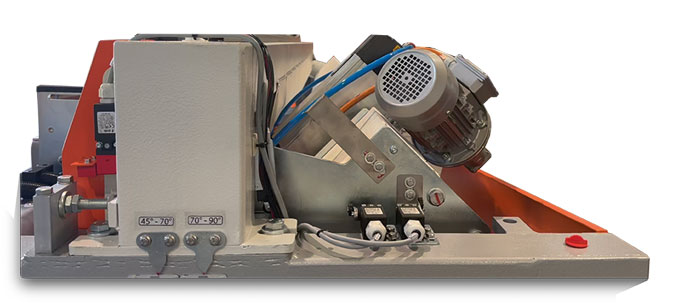

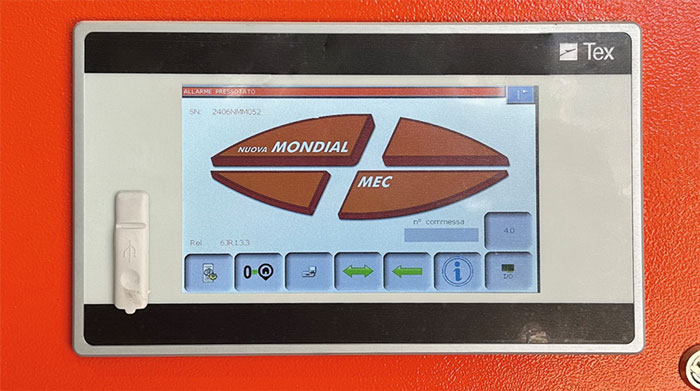

It’s the top quality model of a range of machines especially studied for cutting corners in a very precise way. Its rugged, solid structure equipped with precision slides can assure an exceptional cut quality. The position of the cutting motor below the work surface means that, in most cases, the shiny part of the material is facing downwards and in contact with the machine bench covered with white rubber.. It is equipped with a CNC controlling the cutting movement and speed, the blade tilting from 90° to 45° step by step of 1° each, the diamond blade rotation speed and 4 pneumatic pistons with 8 contact points for blocking the material. It is possible to cut pieces of 45 mm minimum width (with appropriate clamps).

Details



Video

Accessories

6 Leveling feet Side table with 7 rubber covered rollers Mini roll extension 2 Micro Clamps (for thin pieces) 2 Devices for short pieces Ruler to adjust the lenght of cut Table for small pieces Set of servicing wrenches

Optionals

Cutting blade Extra side tables Water tray with pump Operators’ training

Technical Data

ITEM MOD.
150807 FRESA MANTA JR MULTIGRADO 400 - 40 2800 5,5 - 400 3500 60 485x120x115 1290
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.
