Scorpione

Print Friendly, PDF & Email
Scorpione
new version

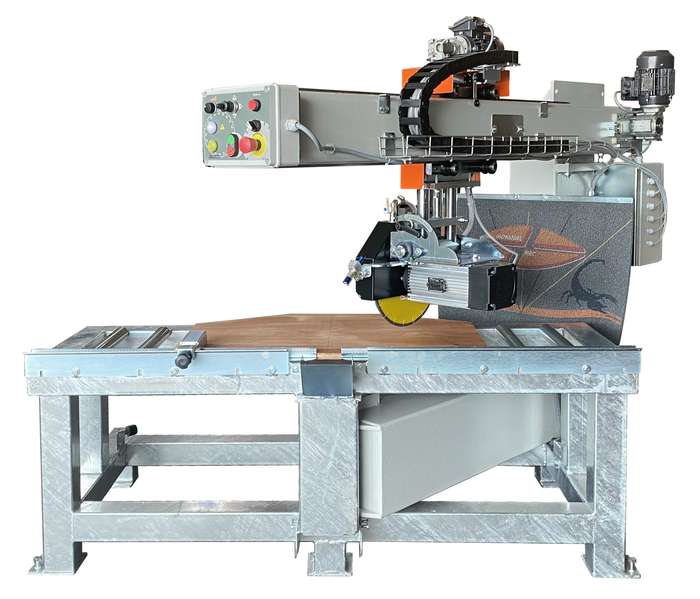

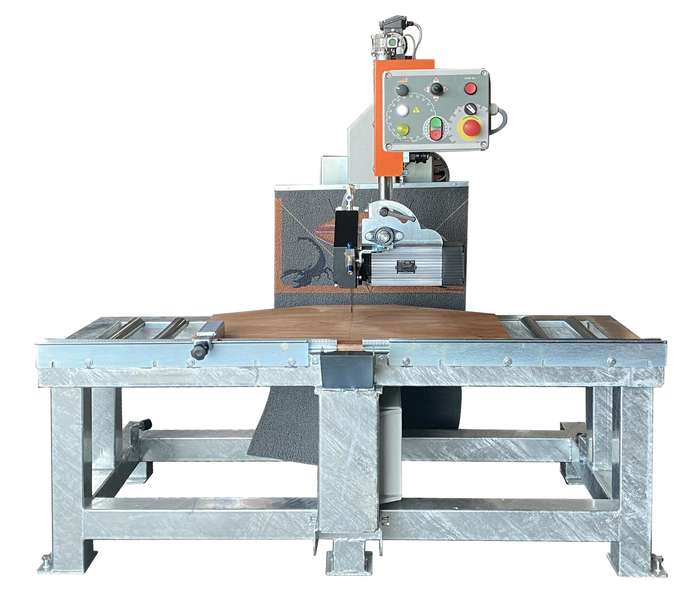

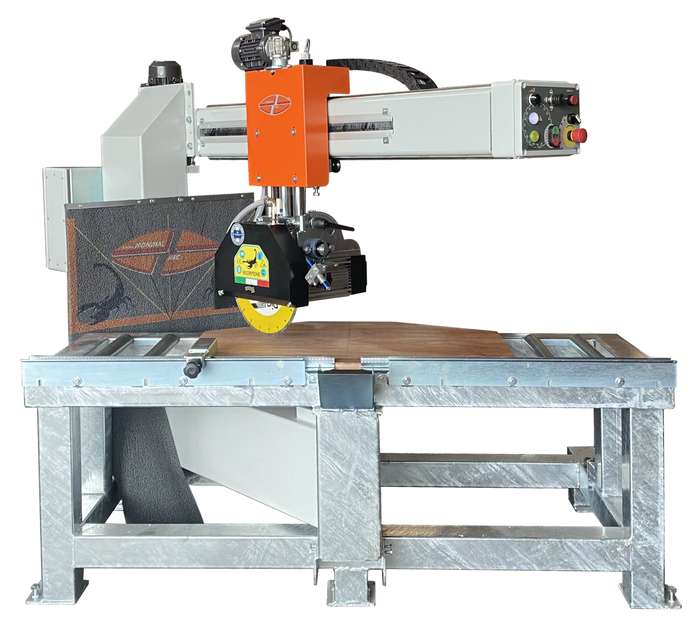

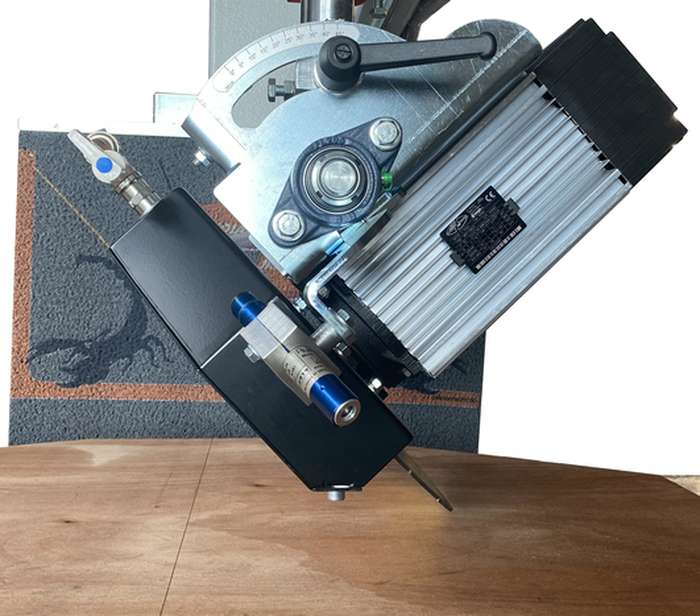

Scorpione is a squaring for cutting slab of marble and granite into elements of reduced length or prederminated. The work roller is equipped with stop for cutting the pieces to the extent desired. The cutting unit, slides on special guides wedge milled steel, along the cutting axis, while the vertical axis slides on chromed shafts and ground of large diameter. Two models available: manual or automatic.

Details



Video

Accessories

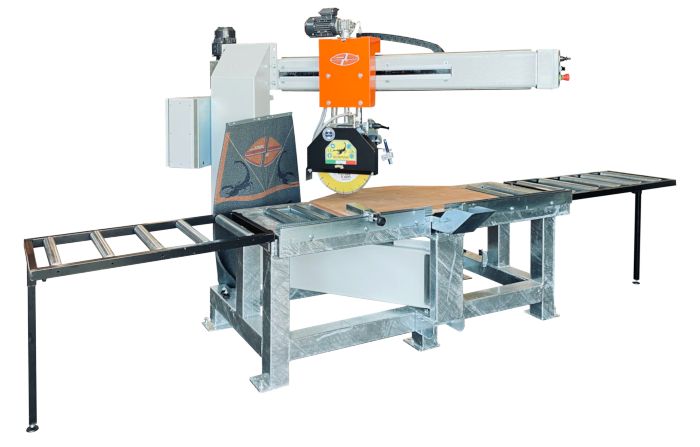

Stop 2 Roller side tables Battery laser pointer Set of servicing wrenches

Optionals

Drilling Unit Cutting blade

Download

scorpione.pdf

Technical Data

ITEM MOD.
122002 SCORPIONE BASIC MONOFASE 350 - 25,4 2800 185x133x187 400
122000 SCORPIONE BASIC 350 - 30 2800 185x133x187 440
122003 SCORPIONE SA MONOFASE 350 - 25,4 2800 185x133x187 440
122004 SCORPIONE SA 350 - 30 2800 185x133x187 450
122011 SCORPIONE SA TRIFASE 350 - 30 1400 185x133x187 450
* Voltage and Power upon Request.
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
