Manta Poker Jumbo Brushless 4+1

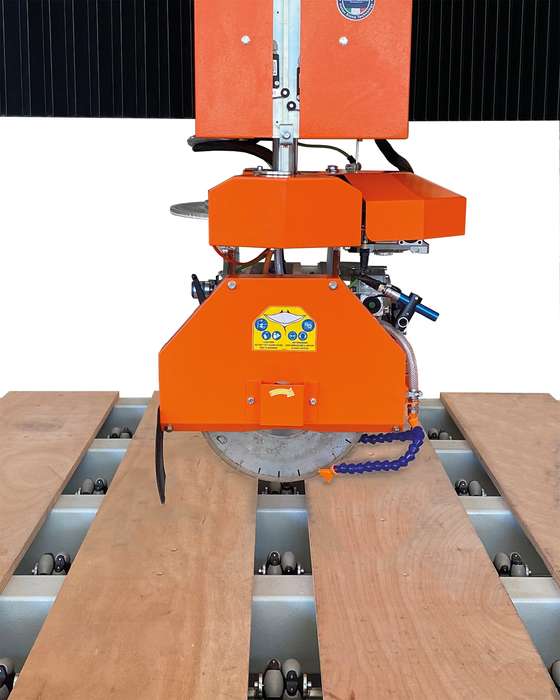

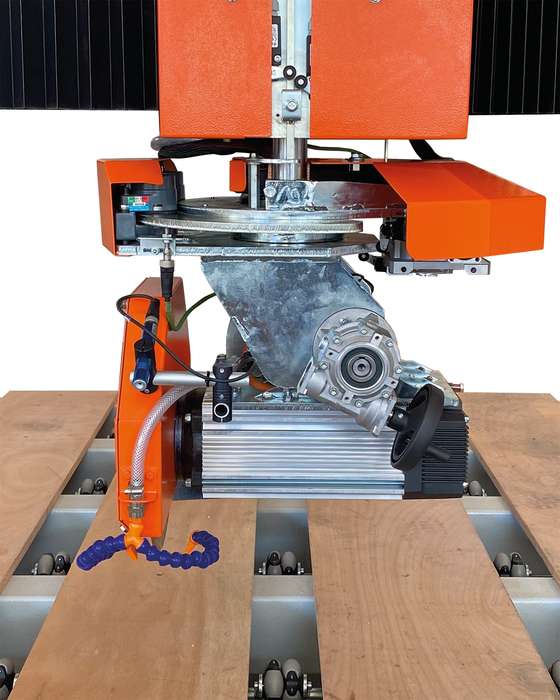

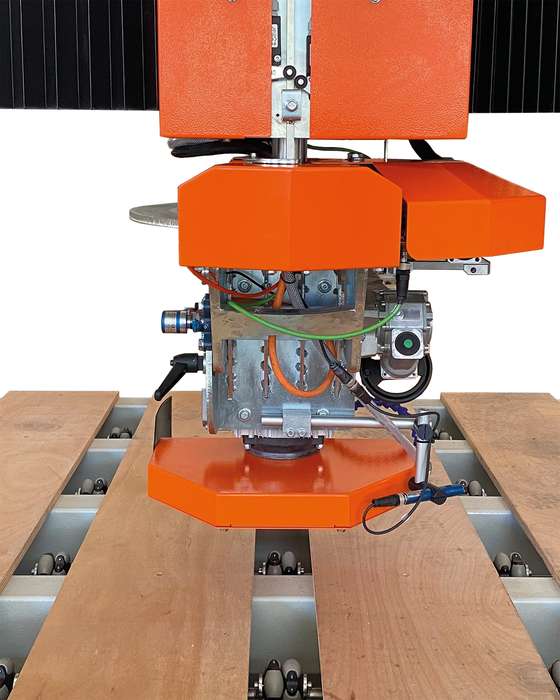

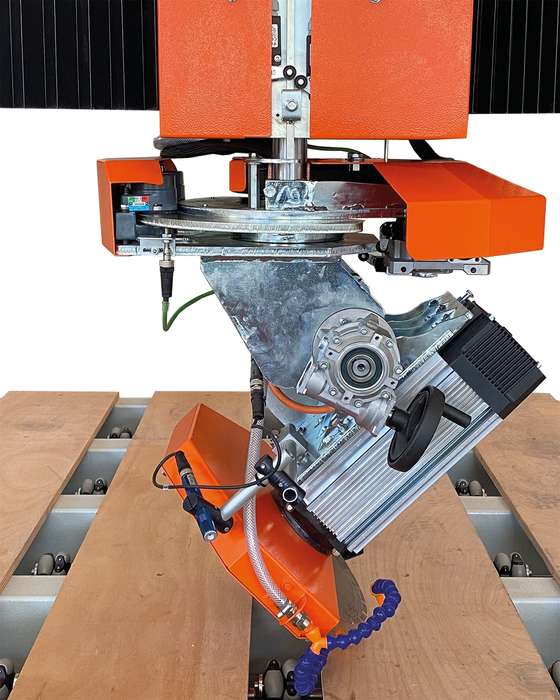

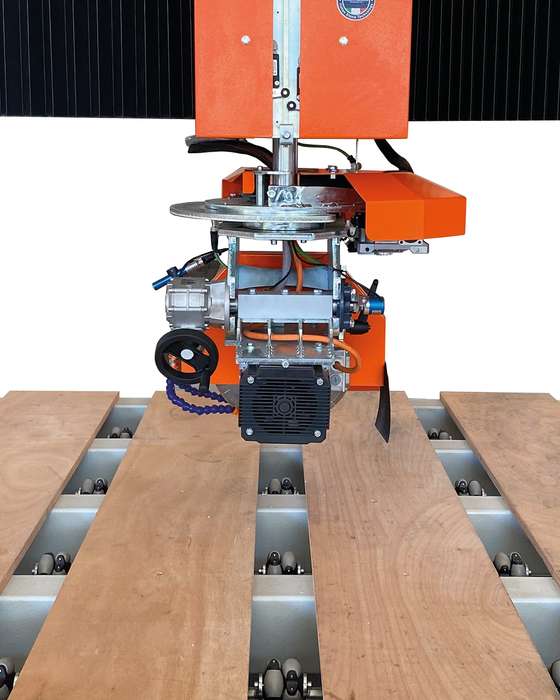

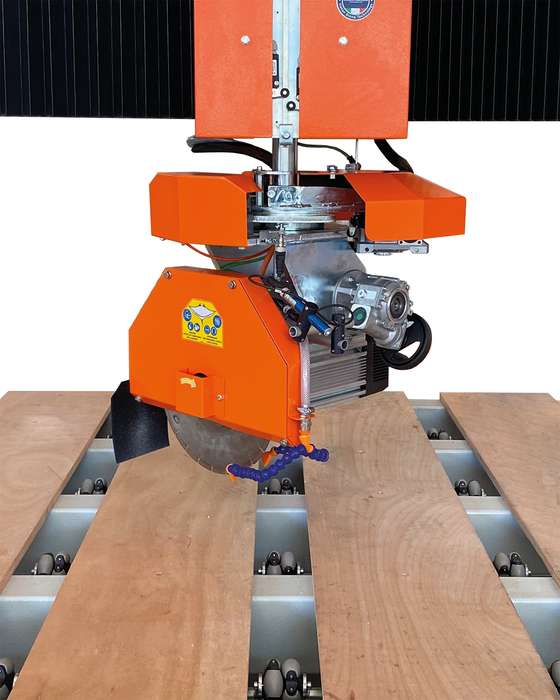

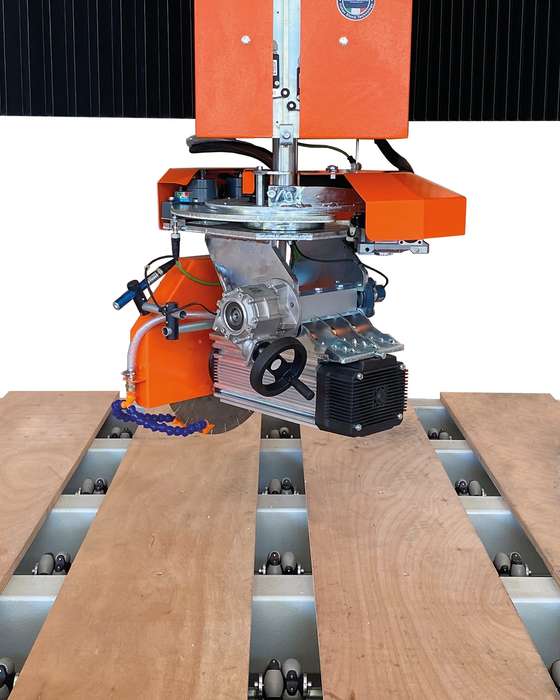

Sturdy and compact numerically controlled bridge saw. 4 motorized and interpolating axis X,Y, Z, C (0° - 180°).  Manual A axis with handwheel (0° - 90°). Movement of the X and Y axis with dual V-wheel, and the Z axis slides on chromium-plated ground bars. Squaring dimensions 3500 x 1850 mm. Standard equipped with inverter for adjusting the rotation speed of the blade (from 600 to 2800 rpm). Thanks to the 5 standard programmed macros, single, multiple, inclined, diagonal, circular cuts can be made.
The movement of the cutting head and axes is managed by a 10" touchscreen CNC integrated in the hanging panel on board the machine, with a simple and intuitive interface.

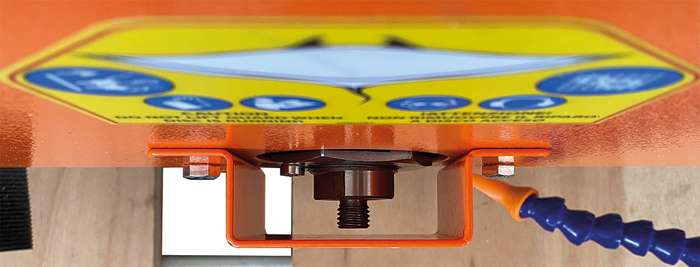

The main technical characteristics are: 8 kW blade motor with tool attachment. Axis protection bellows in special abrasion resistant fabric. Structure and rail painted with ceramic treatment. Cutting head and axis movement managed by drives and brushless motors.
Barriers or other protections are the prerogative of the respective state regulations.

Machine functions: https://youtu.be/y6_9SzjhfvQ

Details



Video

Accessories

Inverter for blade rotation speed adjustment Marine wood bench with integrated system to lift slabs Hanging CNC with touch screen interface Adjustable feet Optical cut marker device (green light) Solenoid valve for cooling water inlet Frontal stops for slabs

Optionals

Diamond blade Profile function Remote keyboard Tray with submersible pump to collect and recover the water cooling the blade Positioning, installation and training of operators

Technical Data

ITEM MOD.
150769 FRESA MANTA POKER JUMBO BRUSHLESS 4+1 400 - 40 600/2800 8 - 400 3500 400 120 546x220x217 2200
* voltage and power on request
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
