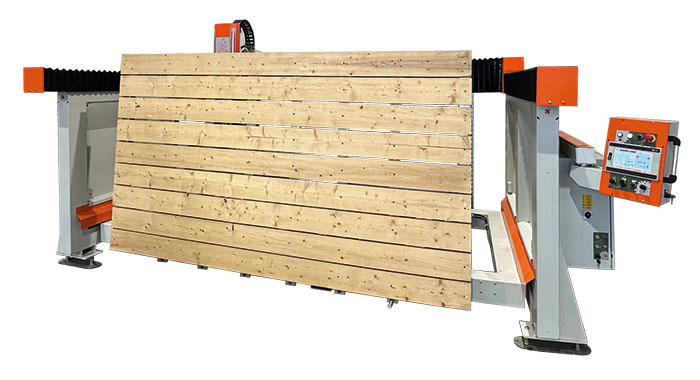

Manta Poker 3500 Easy

Print Friendly, PDF & Email
Manta Poker 3500 Easy
new

Squaring dimensions 3500 x 2100 mm.

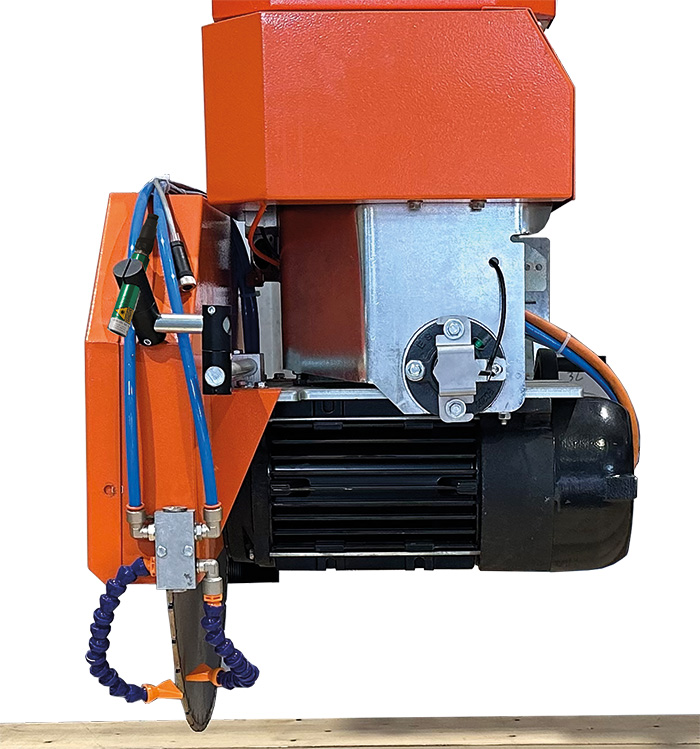

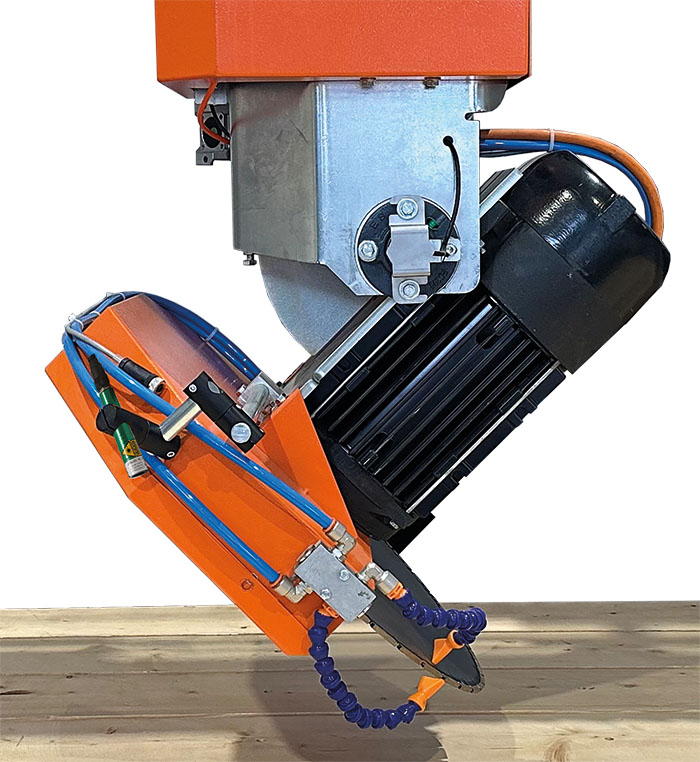

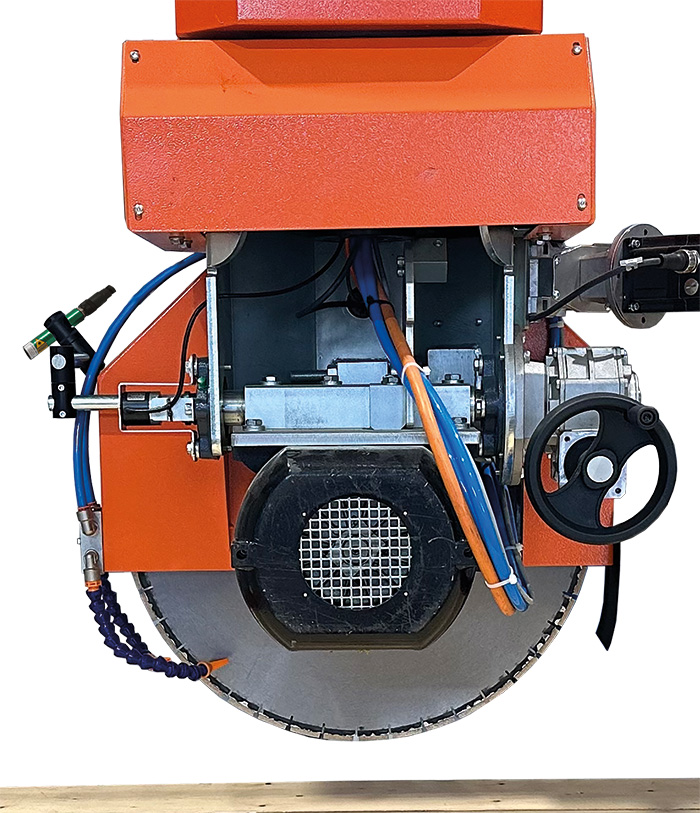

Robust and compact cutter. 4 motorized and interpolating axes X,Y, Z, C (0° - 180°), manual A axis with handwheel (0° - 45°). Movement of the X, Y, Z axes with recirculating ball carriages on ground guides and movement with brushless motors.

Inverter for regulating the rotation speed of the disc as standard.

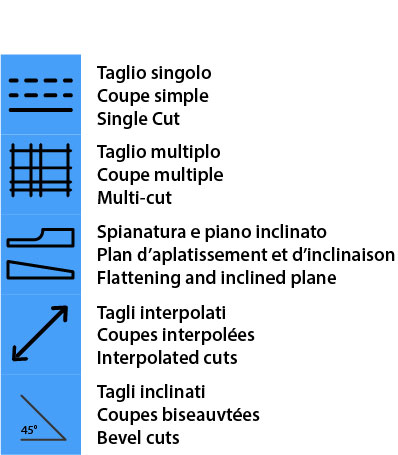

Thanks to the 5 standard programmed macros, single, multiple, inclined, diagonal and round cuts can be made.

The movement of the cutting head and the axes is managed via a 10" touchscreen CNC integrated into the hanging panel on the machine, with a simple and intuitive interface.

Barriers or other protections are the prerogative of the respective state regulations.

Details



Accessories

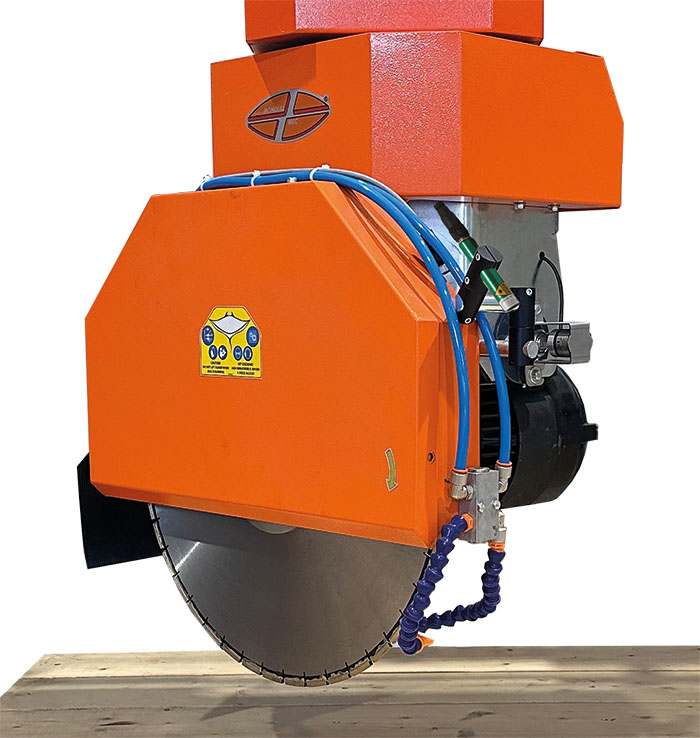

Inverter for blade rotation speed adjustment Hanging CNC with touch screen interface Adjustable feet Optical cut marker device (green light) Front and side mechanical stops Guard for Ø450 blade

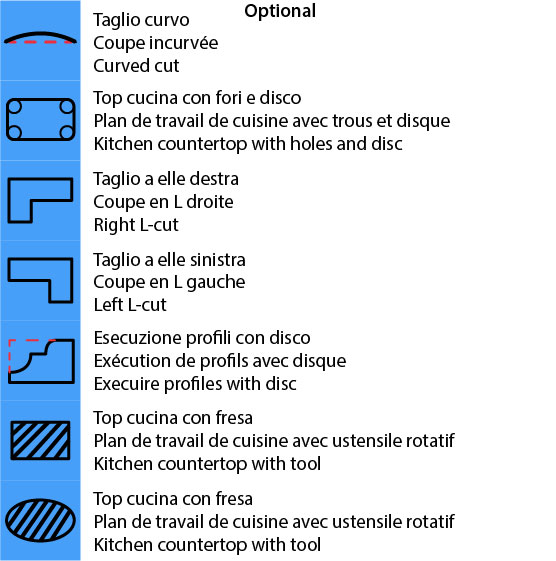

Optionals

Tilting table Led light for work area illumination Removable PVC tank for colletion of blade's cooling water equipped with pump Remote control CAM Software for DXF file import with PC and totem Positioning, Installation of the machine and Training of operators

Technical Data

ITEM MOD.
160402 FRESA MANTA POKER EASY 450 500 - 1600 8 - 400 2100x3500 250 140 - Ø 450 583x220x258 3100
160400** FRESA MANTA POKER EASY TOOLS 450 600-3000 8 - 400 2100x3500 250 140 - Ø 450 583x220x258 3200
16040 FRESA MANTA POKER 3500 EASY 12kw D625 625 500 - 1600 12 - 400 2100x3500 205 205 583x220x258 3200
* Voltage and power on request
** Version with motor with attachment for drilling bits, core bits and blade. A axis 0-90° manual
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
