Manta Poker Jumbo PRO

Print Friendly, PDF & Email

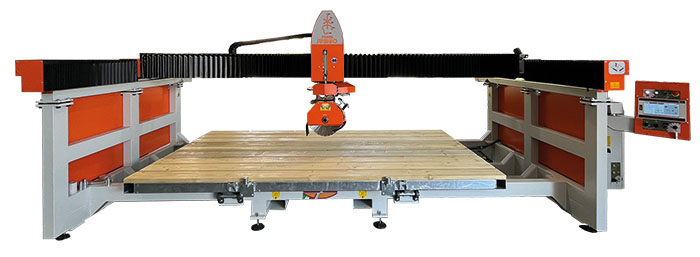

Manta Poker Jumbo PRO
new

Squaring dimensions 3700 x 2000 mm.

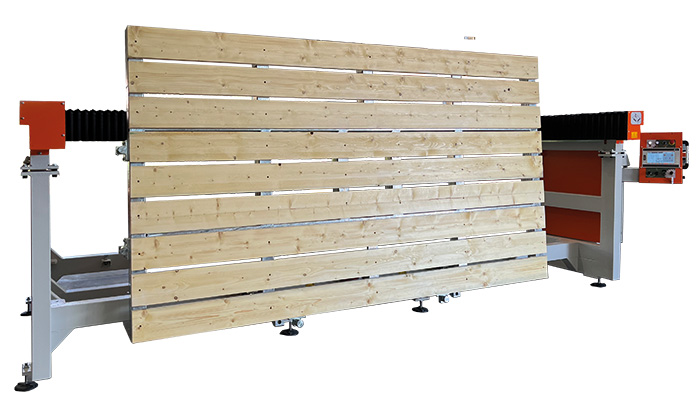

Hot-dip galvanized tilting bench as standard.
4 motorized axes X, Y, Z, C.
C-axis with 180° motorized rotation.

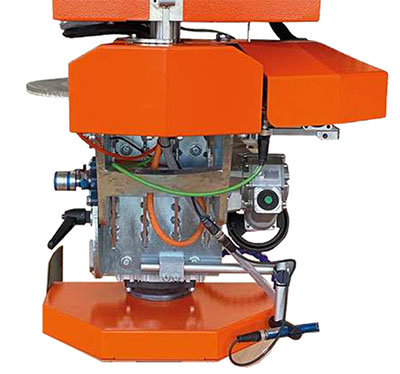

Manual A-axis (head tilt from 0° to 90°, with display of degrees and automatic interpolation).
Inverter for adjusting the rotation speed of the disc as standard.
CNC 10" touchscreen integrated into the console on board the machine, with a simple and intuitive interface. Structure and track with ceramic-based paint for a long life against corrosion.

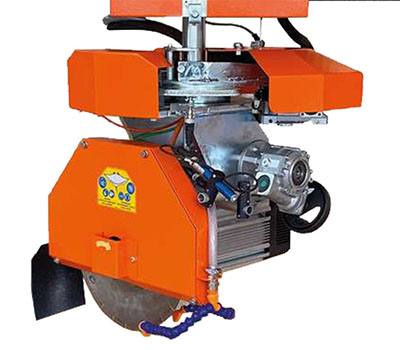

Cutting head movement by brushless motors.

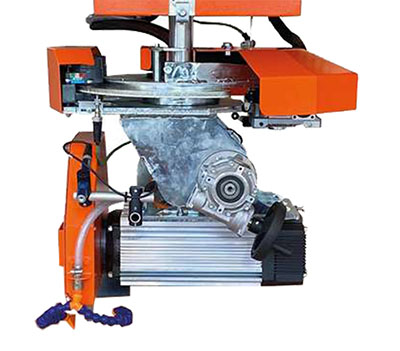

Disc motor equipped with tool attachment for core bits and cutters.


STANDARD EQUIPMENT:
Laser marks green cut, slab support stops.


OPTIONAL:
Side stops, PVC tank for water collection equipped with pump, remote control, CAM software, PC with dedicated support, installation positioning and operator training.

Details



Accessories

Inverter for blade rotation speed adjustment Marine wood bench Hanging CNC with touch screen interface Adjustable feet Optical cut marker device (green light) Frontal and side stops for slabs Solenoid valve for cooling water inlet

Optionals

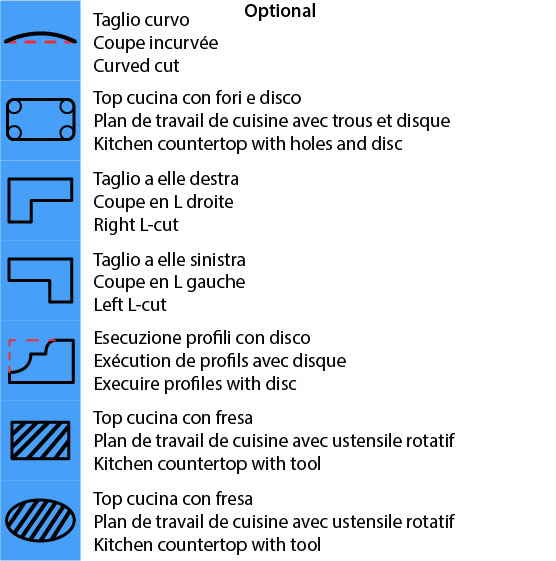

Rubber covered marine wood bench Profile function Kitchen top function Tray with submersible pump to collect and recover the water cooling the blade CAM Software for DXF file import with PC and totem Optoelectric barriers or front safety doors Remote keyboard Positioning, installation and training of operators

Technical Data

ITEM MOD.
160500 FRESA MANTA POKER JUMBO PRO 400 600/3000 8 - 400 2150x3900 250 150 - Ø400 583x230x251 3500
* Voltage and power on request
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
