Ventosa

Print Friendly, PDF & Email
Ventosa
new

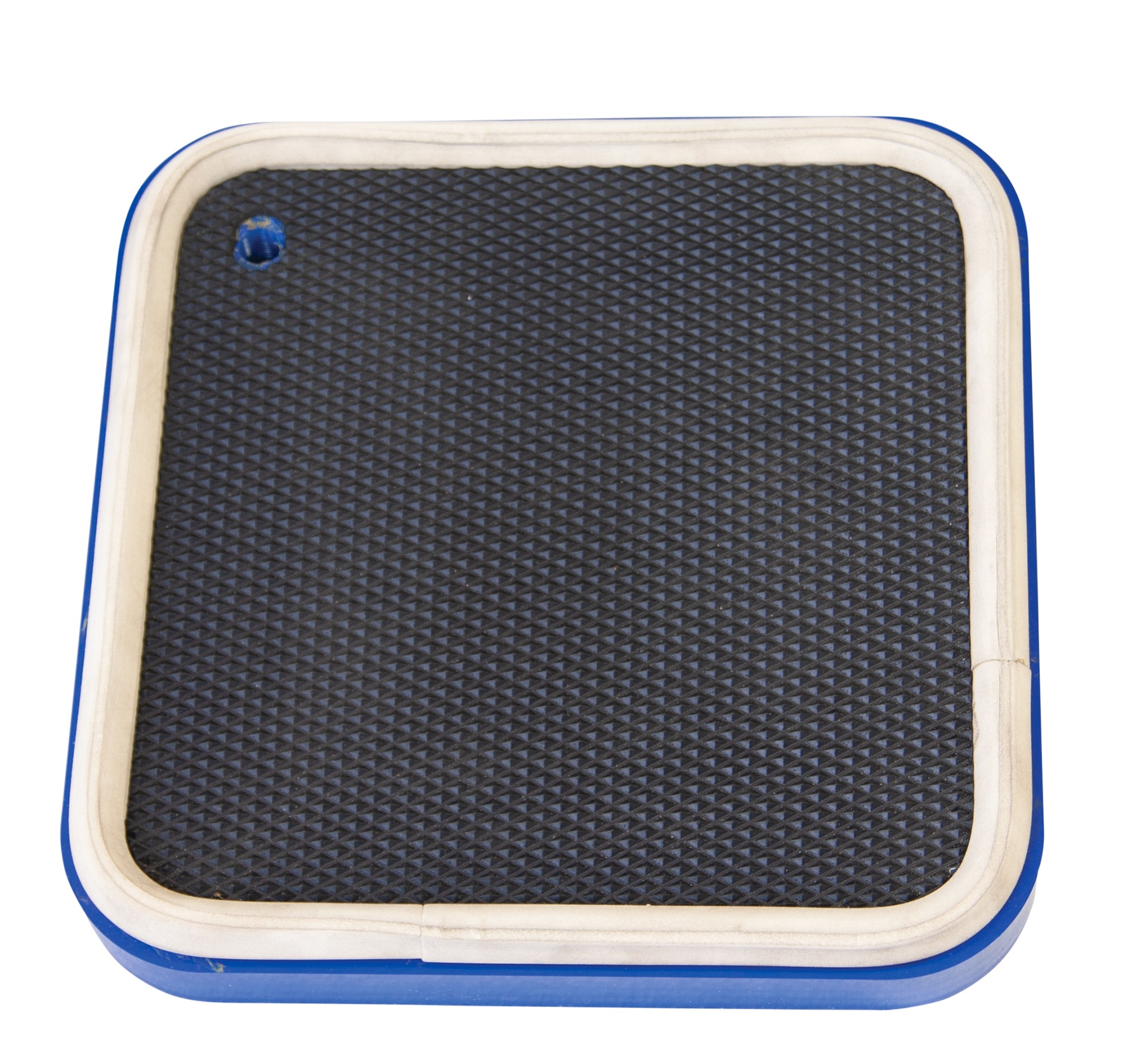

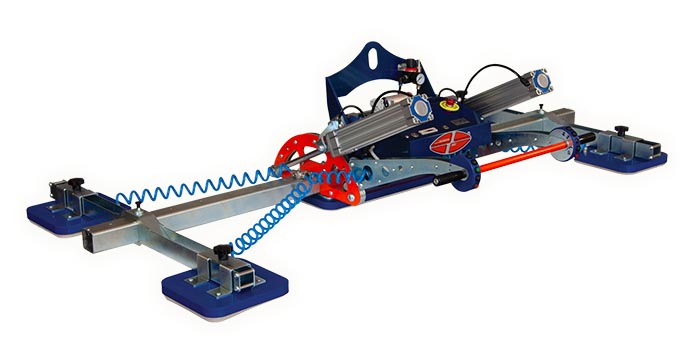

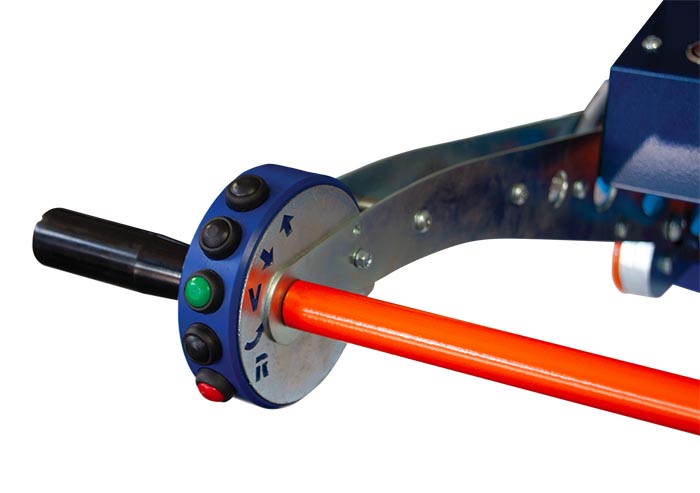

The lowest vacuum in its category. This type of vacuum is created for lifting specific materials such as natural and synthetic stone slabs. The assisted (pneumatic) tilting system allows to lift slabs with a minimum effort. Model with 5 total plates, one at the centre and 4 on the sides. The position of the 4 side plates is adjustable and allows to lift both slabs and semi-finished products. Central plate: 500x200mm. Side plates: 250x250mm.

Details



Accessories

Optionals

Keypad kit

Technical Data

ITEM MOD.

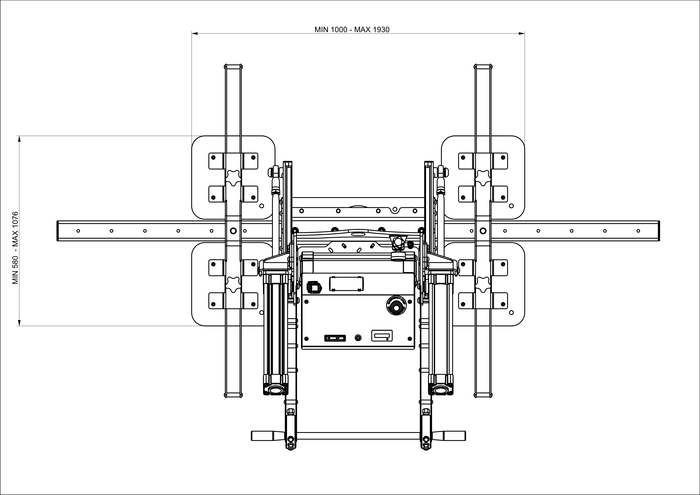

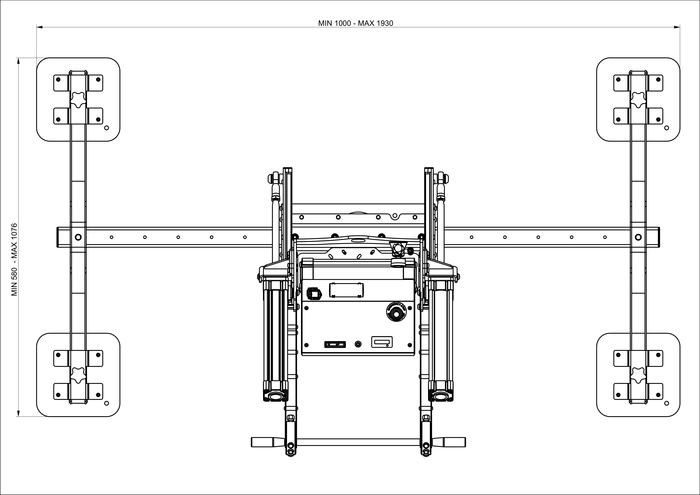

190140 VENTOSA 5/500 RP 500 Kg 1000 - 1930 mm
The technical data herein mentioned are non-binding. They are for your guidance, only.
NUOVA MONDIAL MEC reserves the right to modify the technical features of the machines without prior notice.

One year parts warranty!
